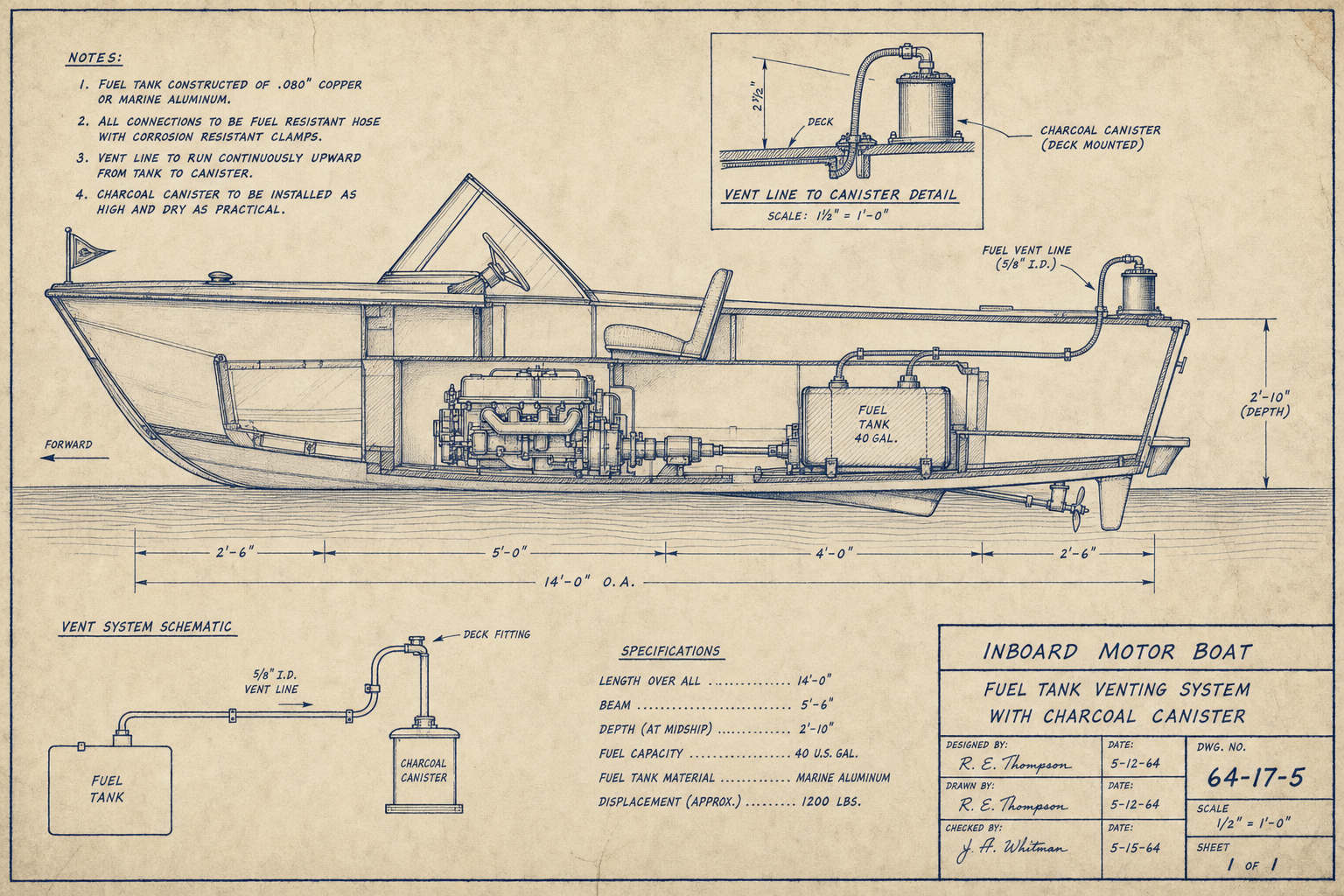

Gasoline-powered inboard fuel systems should capture fuel vapor without ever introducing liquid fuel or water into the canister, and without compromising ignition protection in the engine space. Both ABYC H-24 (gasoline fuel systems) and H-25 (portable and permanently-installed fuel tanks) bear on the install.
What your vehicle came with from the factory
Recreational gasoline boats built since 2011 are subject to EPA marine evaporative-emissions regulations, and most newer boats include some form of vapor control already. Older inboard boats with a simple vented tank — common on Chris-Craft, Century, Lyman, and similar classic runabouts — are the typical retrofit target. These typically use a through-hull vent and a simple cap-vented filler arrangement.
What's vehicle-specific to watch for
- Consider installing the canister outside the engine compartment unless every component (canister, hoses, fittings) is documented as ignition-protected — this is the cleanest path to USCG and ABYC compliance.
- A liquid-check valve between the tank vent and the canister is strongly recommended; marine tanks can slosh, and liquid fuel in the canister will saturate the media.
- Worth confirming the tank-vent location, vent-line drainage, and that no portion of the vent line can trap fuel.
- The canister supplements the through-hull tank vent rather than replacing it — keep the original vent functional.
- USCG A1-15 or A1 hose is the appropriate spec for marine vent plumbing. Automotive vapor hose isn't rated for the same permeation or fire-resistance standards.
- For larger tanks (40+ gal), the High Capacity Vapor Trapper is the typical choice; ABYC H-24/H-25 includes sizing formulas worth consulting.
Notable years & fun facts
- Chris-Craft built more than 100,000 wooden boats between 1922 and the early 1970s — the company's Algonac, Michigan factory became known as "the Detroit of boatbuilding."
- Most pre-1970 inboard runabouts ran adapted automotive V8s — a 327 in a 1968 Chris-Craft Super Sport is essentially the same long-block found in a contemporary Corvette, just marinized.
- Gasoline inboards became less common after the 1980s as outboards and diesel inboards took over the recreational market, but the classic-boat restoration scene has kept gasoline-inboard service knowledge alive.
For the actual installation steps, see the universal Vapor Trapper installation guide — the procedure is the same across vehicles, only the routing and mounting changes.
Building something specific or unsure about routing on your application? Contact us with a few photos of your engine bay and tank area and we'll help you spec the right setup.
