Charcoal Canister Buyer's Guide
A charcoal canister captures fuel vapor that would otherwise vent to atmosphere from your fuel tank. The vapor sits in a bed of activated charcoal until the engine runs and pulls it through the intake. Result: no garage fumes, no lost gasoline, no smell-test-failed inspection.
This guide walks from the most common street builds down to specialized applications. If you already know what you want, our full catalog is here. If you would rather just talk it through, email sales@vaporcanister.com.
Vapor Trapper lineup at a glance
Six product lines cover most builds. Within most lines, you also pick a length — the 4" / 6" / 8" numbers refer to canister body length, not diameter. All Vapor Trapper bodies are 2.5" diameter except the High Capacity, which is 3.5". Port size refers to the inlet/outlet fitting size.
| Canister |
Length × Diameter |
Port Options |
Typical Tank Range |
Best For |
| Small Engine |
4" × 1.5" |
1/4" barb |
up to ~5 gal |
Generators, mowers, motorcycles, gas cans, small power equipment |
| Vapor Trapper (Standard) |
4", 6", or 8" × 2.5" |
1/4" or 3/8" |
10-25 gal |
The default for most classic cars, hot rods, and street builds |
| Low-Profile |
low-profile billet |
1/4" or 3/8" |
10-25 gal |
Same capability as Standard, in a lower-clearance form factor for tight engine bays |
| High Performance |
4", 6", or 8" × 2.5" |
1/2" / -8 AN |
10-25 gal (vents faster) |
Tanks that need to vent more quickly — big-block, boosted, race fuel cells |
| HP Low-Profile |
low-profile billet |
1/2" / -8 AN |
10-25 gal (vents faster) |
High-flow venting in a low-clearance form factor |
| High Capacity |
8" × 3.5" |
-6 ORB / 3/8" or -8 ORB / 1/2" |
25-60+ gal |
Exceptionally large tanks — dual-tank trucks, marine inboards, oversized custom fuel cells |
How to think about length, port, and form factor
-
Length (4" / 6" / 8"): Longer body = more activated charcoal = more vapor stored between purges and more headroom for long storage or hot climates. If you have space for any of the three, going longer is generally the better call — more venting power and longer service life between charcoal recharges.
-
Diameter: The Standard, Low-Profile, and High Performance lines all use a 2.5" body. The High Capacity is the only 3.5" body, and it exists specifically for tanks that produce more vapor than an 8" Standard can keep up with.
-
Port size: 1/4" and 3/8" are the common street-build sizes and are fine for most carbureted and mild-EFI applications. 1/2" / -8 AN (the High Performance lines) is for builds that need to vent faster — large displacement, forced induction, fast-fueling race plumbing.
-
Standard vs. Low-Profile: Same charcoal capability, different form factor. Low-Profile is a direct-mount package designed to tuck into tight spaces; the Standard uses a clamp-mount cylindrical body. Functionally equivalent — pick on fit.
-
Dell clamp vs. billet clamp: Both are fully functional and hold the canister equally well — the choice is aesthetic. Billet matches a polished/anodized engine bay; the standard Dell clamp is the budget option and works just as well mechanically.
Most common setups
These cover the majority of customers. Start here.
Classic car / hot rod / restomod (10-25 gallon tank)
Typical setup: Standard Vapor Trapper + 3/8" fuel-rated vapor hose + non-vented gas cap.
Often paired with: A K&N slip-on filter on the atmospheric port (cheap insurance against dust). Bulkhead barb if you need to drill the filler neck.
Big-block / large tank / dual-tank truck (25-60+ gallons combined)
Typical setup: High Capacity Vapor Trapper + 3/8" hose + tee fitting (for dual tank) + non-vented caps.
The -6 ORB / 3/8" barb variant works for most street plumbing. The -8 ORB / 1/2" variant is worth considering if your build runs larger vent lines end-to-end.
See: Square-body guide, F-Series guide
Tight engine bay (modern restomod, late-model swap)
Typical setup: Low-Profile Vapor Trapper + 3/8" hose + non-vented cap. The 1/4" port variant is worth considering if your vent lines are already small and you want a cleaner fit.
The lower-clearance package keeps the canister out of the way of brake boosters, master cylinders, and aftermarket air boxes.
Less common setups
Off-road (Jeep, Bronco, pickup that sees real off-road use)
Typical setup: Standard Vapor Trapper + 3/8" hose + rollover valve + K&N slip-on filter on the atmospheric port + non-vented cap.
A rollover valve is strongly recommended for any vehicle that may tilt past ~30 degrees — it seals the tank vent during off-camber moments so liquid fuel does not reach the canister. The MTS JLCV-1 is a popular off-the-shelf option, but any quality rollover valve sized for your vent line works.
The K&N filter on the atmospheric port matters more here than on a garage-queen street car — dust, sand, and trail debris get pulled into the canister every time it purges. A clean filter keeps grit out of the charcoal media and extends service life noticeably. Same logic applies to any vehicle that lives in a dusty environment (Arizona, desert builds, ranch trucks, jobsite generators).
See: Jeep guide, Bronco guide
EFI conversion / LS swap
Typical setup: Standard Vapor Trapper + 3/8" hose + non-vented cap + 12V purge solenoid (normally closed) wired to either ignition-switched 12V or the ECU EVAP output (if your aftermarket ECU has one).
The solenoid is worth considering on tuned EFI builds — without it the canister still works, but you may see some fuel trim drift during light-throttle cruise as the engine pulls vapor unmetered.
Specialized applications
Marine inboard (gasoline)
Typical setup: High Capacity Vapor Trapper (sized per ABYC H-24/H-25) + USCG A1-15 or A1 marine fuel hose + watertight P-trap vent fitting + FLVV/GRV upstream + ABYC-listed components for any electrical valves + double-clamped connections.
Sizing guideline (ABYC): Boats ≤26 ft: canister liters ≈ 0.04 × tank gallons. Boats >26 ft: ≈ 0.016 × tank gallons.
Avoid: Automotive vapor hose, single hose clamps, or non-ignition-protected hardware in the engine room.
See: Marine install guide
Stationary generator (gasoline)
Typical setup: Small Engine for tanks up to ~5 gal, or Standard for larger tanks + 3/8" hose + non-vented cap or atmospheric-port plug.
Worth planning for: An annual charcoal check if the generator only runs during outages and does not exercise weekly. Sitting tanks saturate canisters faster than driven ones.
See: Generator install guide
Race or trailered car (rarely driven, high-flow plumbing)
Typical setup: High Performance (or HP Low-Profile for tight bays) + 1/2" / -8 AN vent line + non-vented cap.
Worth planning for: Manual purge before storage if the car will sit for more than 60 days. For very long storage, disconnecting the tank vent and capping the canister inlet prevents slow saturation.
Selection matrix
Full grid for cross-referencing if you would rather think in a table than in prose.
| Application |
Canister |
Rollover Valve |
Solenoid |
Special Hose |
| Street car / hot rod |
Standard |
Optional |
No |
No |
| Big-block / large tank |
High Capacity |
Optional |
No |
No |
| Off-road / Jeep |
Standard |
Recommended |
No |
No |
| Marine inboard |
High Capacity |
Recommended |
ABYC if used |
USCG A1-15 / A1 |
| Stationary generator |
Small Engine / Standard |
No |
No |
No |
| Dual tank truck |
High Capacity |
One per tank (off-road) |
No |
No |
| EFI / LS swap |
Standard |
Optional |
Recommended |
No |
| Race / trailered |
High Performance |
Optional |
No |
No |
| Tight engine bay |
Low-Profile / HP Low-Profile |
Optional |
Build-dependent |
No |
Sizing notes
Charcoal capacity needed depends on three things:
-
Tank size: A 20 gallon tank produces more daily vapor than a 5 gallon tank, all else equal.
-
Temperature swing: A car parked outside in Phoenix sees 60° daily swings; a car in a climate-controlled garage sees 10°. More swing = more vapor.
-
Use cycle: A car driven daily purges the canister regularly; a car driven monthly accumulates vapor for weeks before purging.
If you are between two body sizes, going up one size is generally the safer bet — more charcoal means more buffer before saturation. For deeper math, see our canister sizing article. For marine applications, ABYC H-24/H-25 sets the formula above.
Fittings, material, and mounting
Fittings
Three ports on a typical canister:
-
Tank vent: Receives vapor from the fuel tank (3/8" on Standard / High Capacity / Low-Profile, 1/2" on High Performance variants, 1/4" or 3/8" on Low-Profile variants).
-
Atmospheric vent: Where outside air enters when the canister purges. Filtered on most builds.
-
Purge: Sends stored vapor to the engine intake (usually 3/8" or 1/4").
Most Vapor Trappers use ORB barbed fittings sized for fuel-rated vapor hose. A direct port match to your vent line is cleaner than relying on adapters. The common port thread is -6 ORB (9/16-18 thread). When -6 ORB is unavailable, a -6 AN fitting works fine since only vapor flows through.
Material and durability

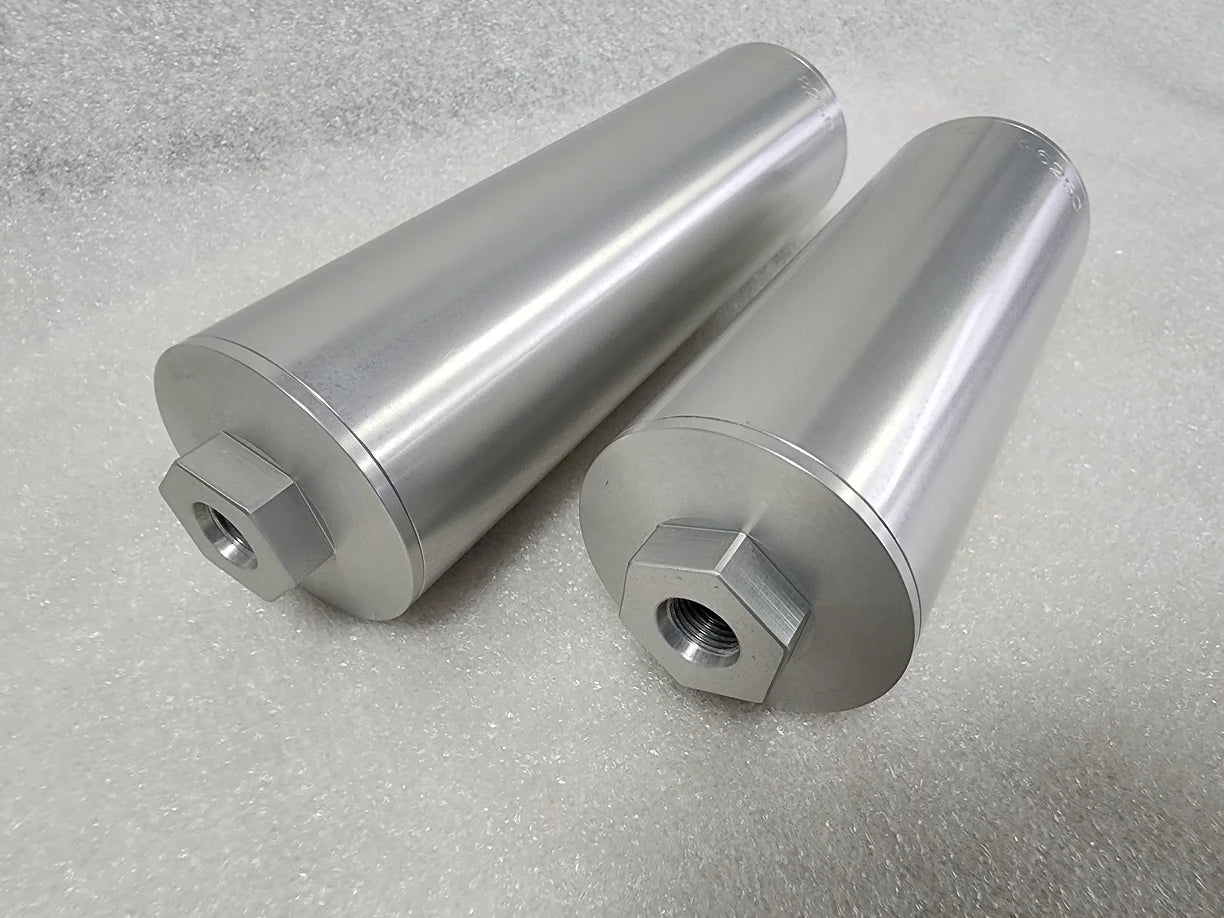

Every Vapor Trapper canister is billet 6061-T6 aluminum — anodized, corrosion-resistant, and rebuildable. Charcoal media can be replaced rather than the entire unit. See when to recharge charcoal media.
Why not steel or plastic?
-
Steel: OE-style but rust-prone over decades. Not used on Vapor Trapper.
-
Plastic / polymer: Modern OEM standard. Light and cheap but degrades with UV and heat over decades, and not serviceable when it does.
-
Billet aluminum: Light, durable, looks right in a clean engine bay, lasts indefinitely if not abused.
Mounting options
-

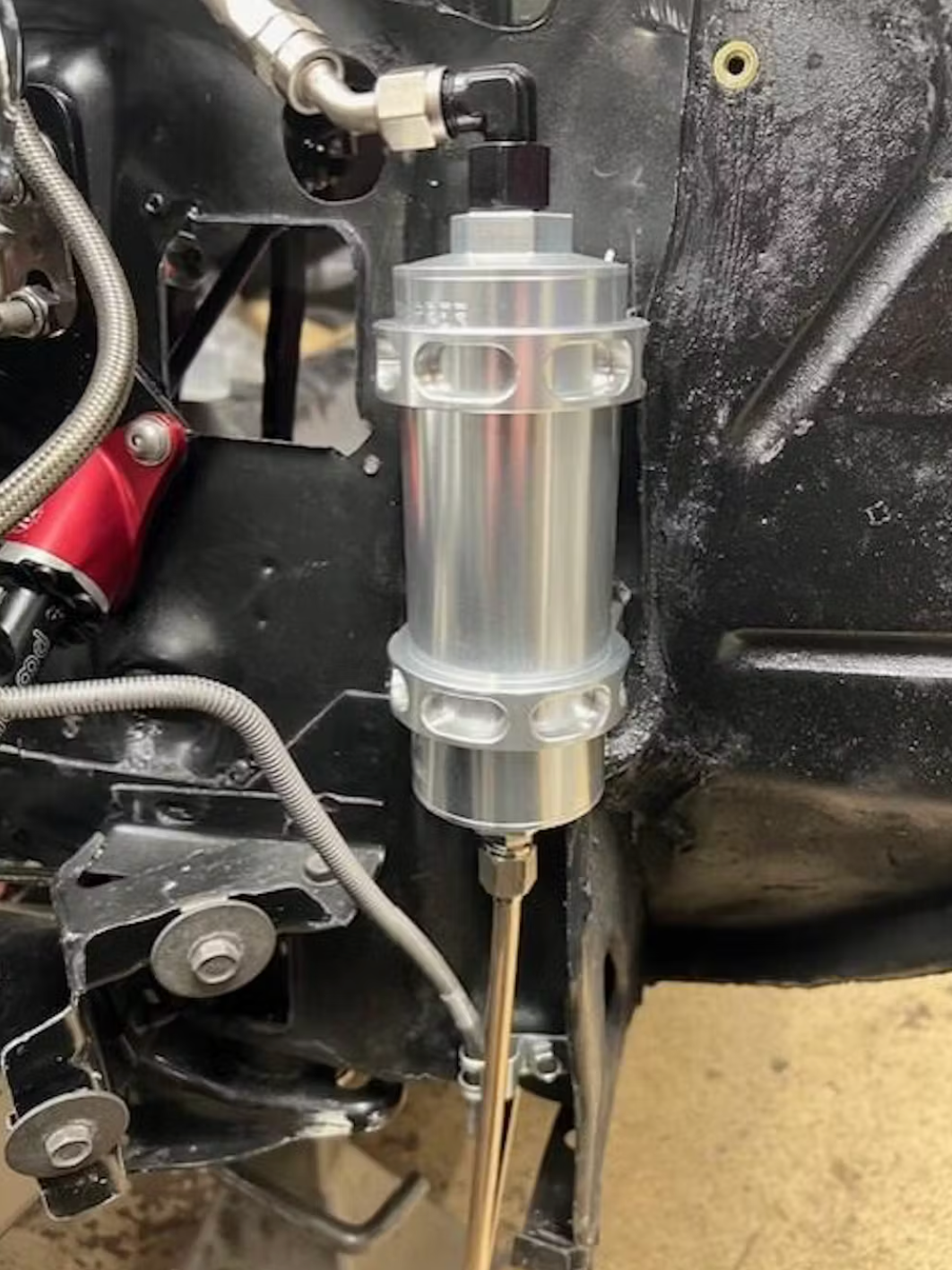

Engine bay inner fender: Most common. Easy hose routing, hides under the hood.
-
Firewall: Tight cars, custom builds.
-

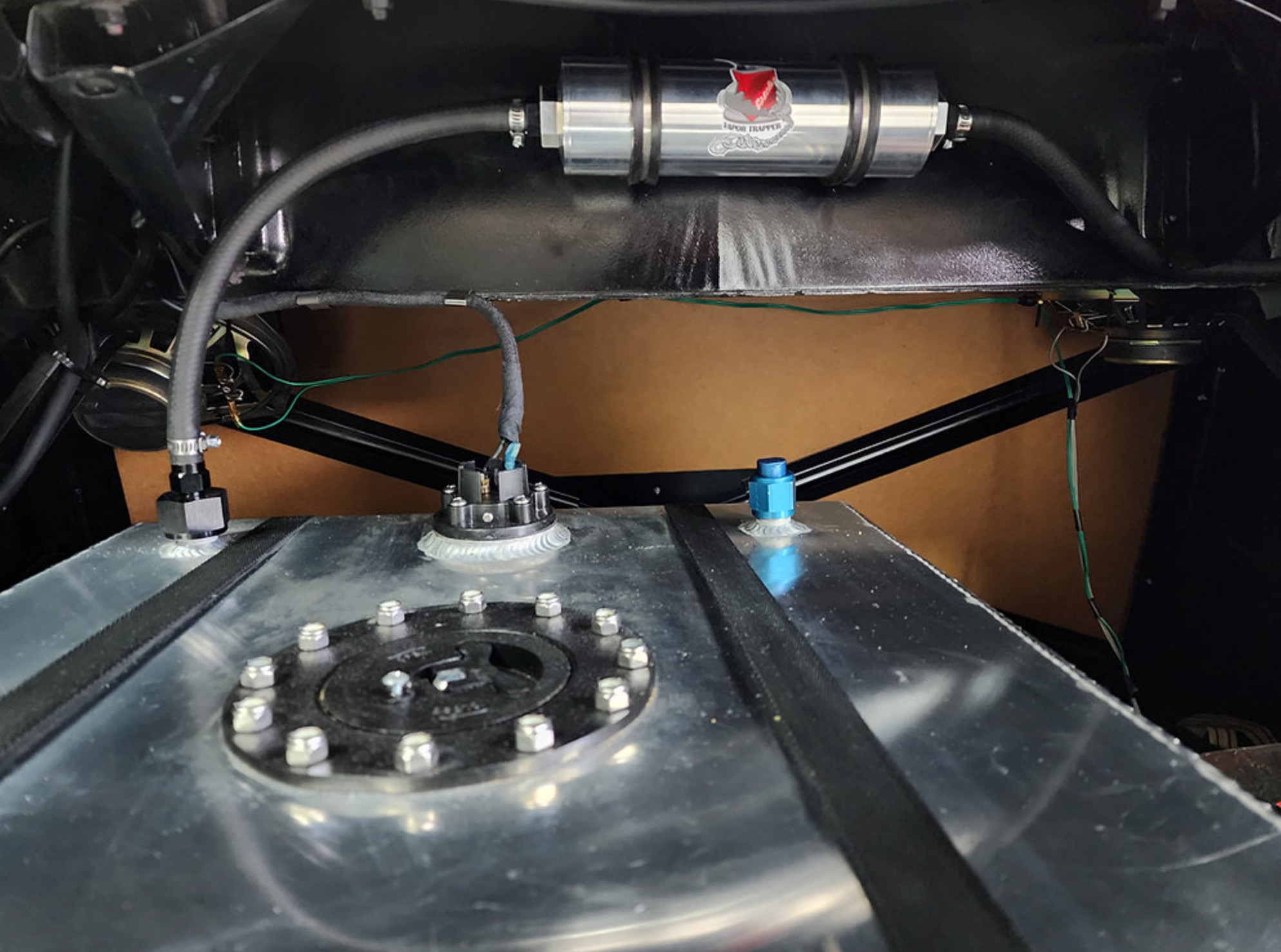

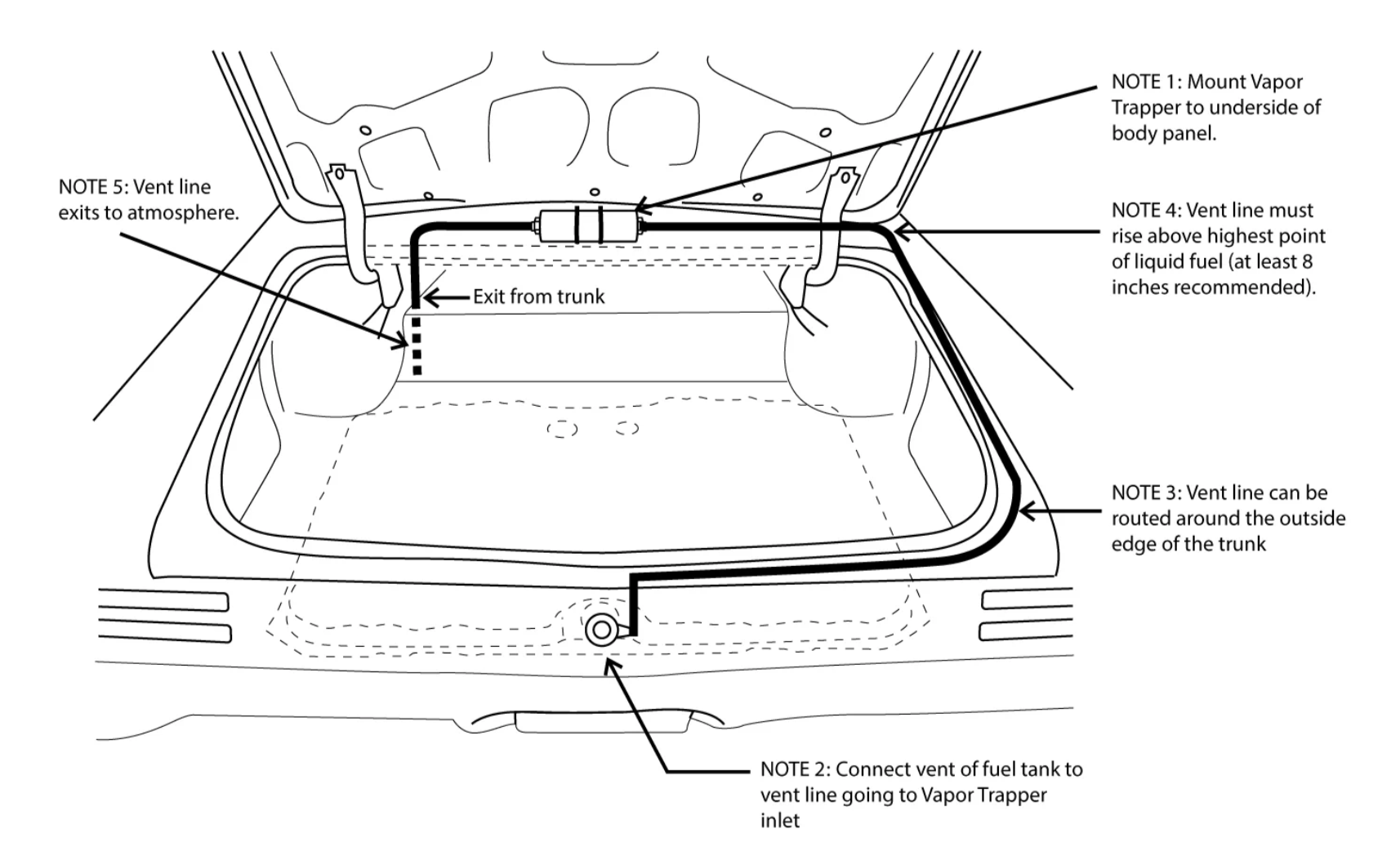

Trunk / under bed: Concours hidden installs. Requires longer purge line.
-

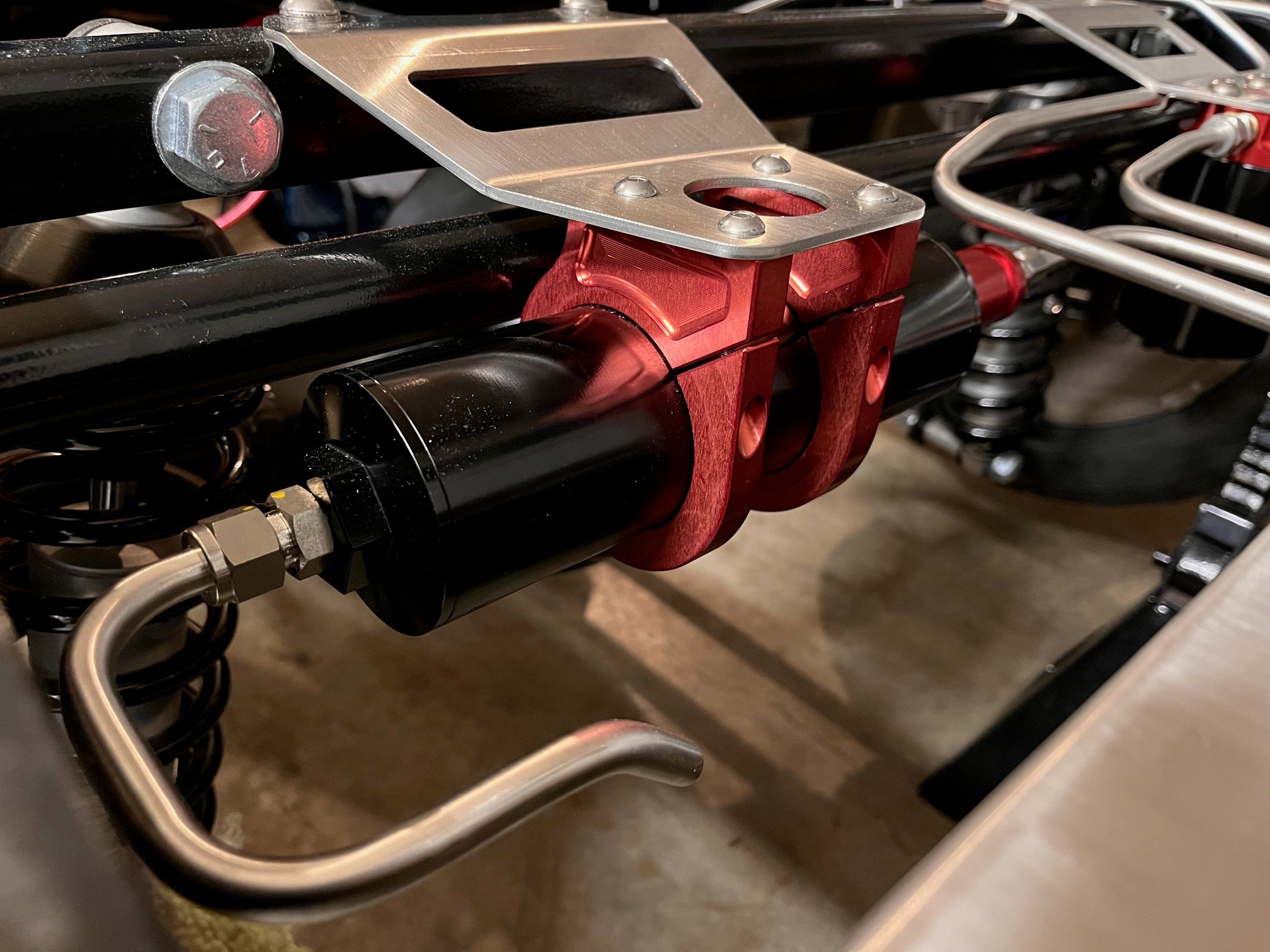

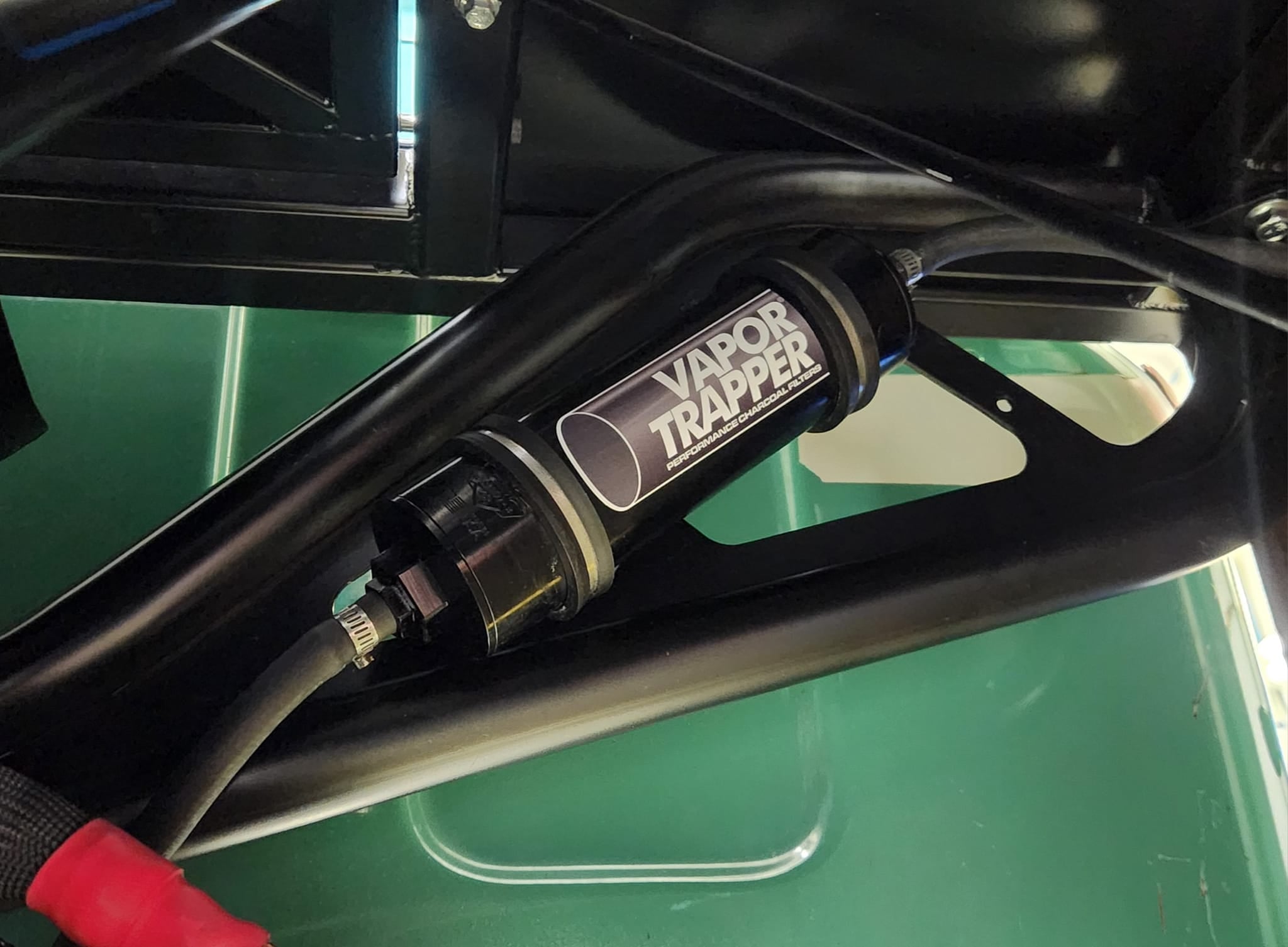

Frame rail (trucks): Out of the way, exposed to road grime — factor in a skid guard.
Every Vapor Trapper ships with a universal bracket that fits most of these locations with simple hardware. The Premium Billet Clamp is the cleanest mount for inner-fender installs.
Install kits vs build your own
If you want everything in one box:
Still not sure?
If your application is unusual — large auxiliary tank, dual-fuel setup, dragster, ATV — email sales@vaporcanister.com before you order. We will spec the right setup or tell you if a canister is not the right solution.
