One of the things that separates a real charcoal canister from a throwaway plastic unit is that the media is rechargeable. The body lasts forever; the charcoal inside has a finite service life. Knowing when to recharge — and how to do it — is part of owning the system.
How long does the charcoal last?
Under normal use — a classic car or truck driven occasionally and stored in a closed garage — the charcoal media in a Vapor Trapper™ typically lasts 3 to 7 years before saturation. The range is wide because saturation depends on:
- How much fuel vapor your tank produces (tank size, temperature, storage conditions)
- How often the vehicle runs (running uses fuel, which reduces vapor pressure in the tank)
- Whether liquid fuel ever reached the canister (this saturates the media instantly)
- Charcoal grade quality (the Vapor Trapper uses purpose-built fuel-vapor charcoal, which lasts longer than aquarium-grade)
How to tell when it's saturated
The simplest test: walk up to the canister with the vehicle parked and the tank full. Sniff close to the atmosphere-side fitting.
- No fuel smell: charcoal is still active, doing its job
- Faint fuel smell: media is approaching saturation, plan to recharge in the next few months
- Strong fuel smell: media is saturated, recharge now
The other tell: if your garage starts smelling like fuel again after years of being clean, the canister is probably saturated.
The recharge process

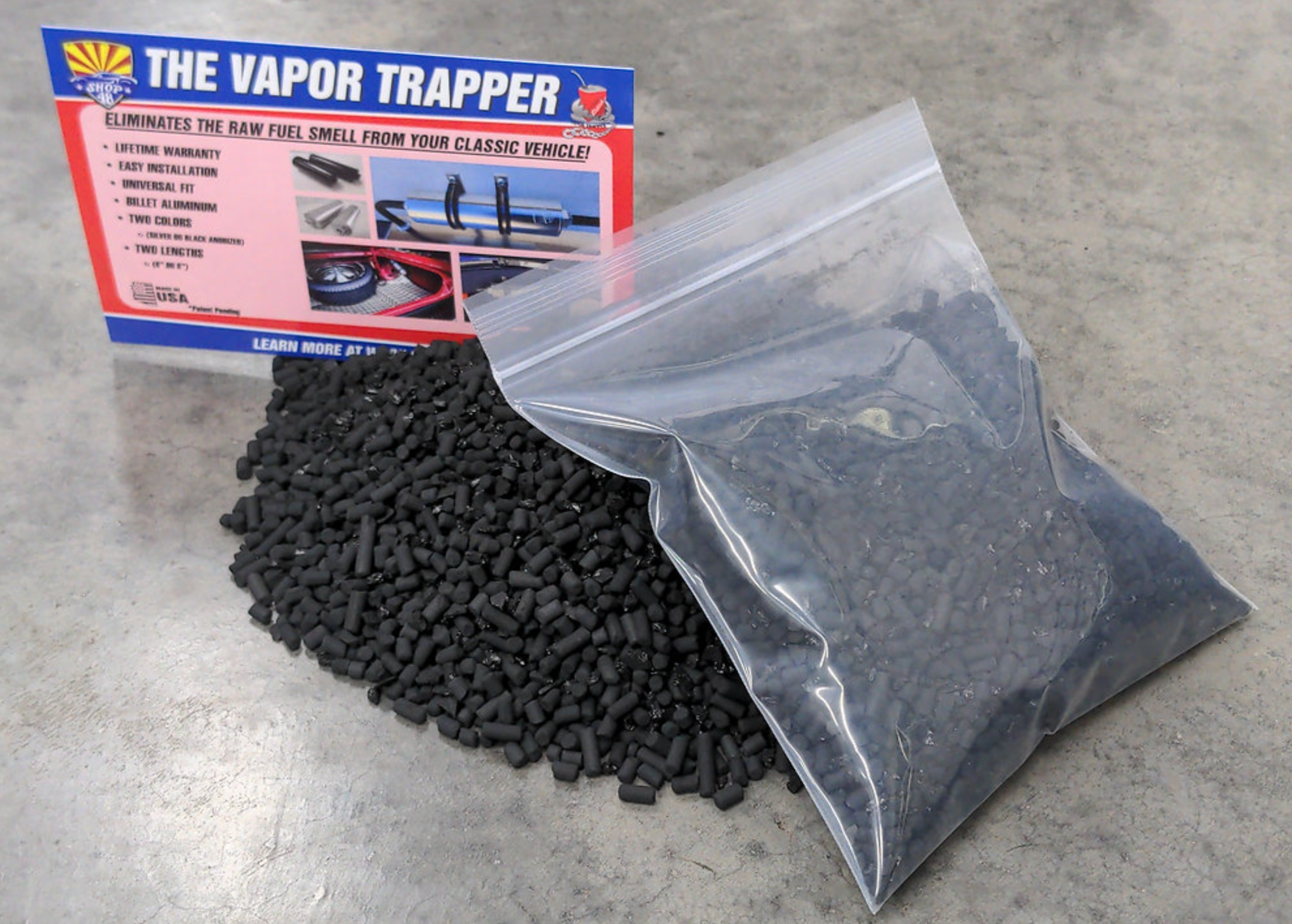

The Charcoal Media Refill Kit includes the right amount and grade of charcoal for the canister. The process takes about 15 minutes.
- Disconnect the canister. Remove the hose clamps, pull the hoses off the fittings. Unbolt the mounting clamps and bring the canister to a workbench.
- Disassemble. Unscrew the end cap. The Vapor Trapper has retention screens that hold the media in place — set them aside in order.
- Empty the old media. Pour the old charcoal into a sealed container for disposal. Do NOT dump it in soil or down a drain — saturated charcoal contains hydrocarbons. Dispose of it as oily rag waste at a hazmat or auto parts collection site.
- Inspect the body and screens. Wipe the canister body clean. Check the screens for damage. Check the O-ring on the end cap — if it's flat or cracked, replace it.
- Refill. Pour the new media in. Tap the canister gently on the bench to settle the charcoal so it packs evenly with no air gaps.
- Reinstall the screen and end cap. Tighten by hand, then snug with a wrench. Don't overtighten and crush the O-ring.
- Reinstall the canister. Bolt it back in place, reconnect the hoses, secure with hose clamps.
How to extend the service life
- Mount above the tank's high-fuel level. If liquid fuel never reaches the canister, the media only handles vapor — and vapor saturation takes years.
- Use a K&N pre-filter on the atmosphere side if you're in dust-heavy or marine environments. Dust and salt air reduce flow and shorten media life.
- Consider an 8" canister for big-blocks, dual-tank trucks, or high-vapor applications. More media = longer service interval.
- Add a Fuel Stopper in the vent line if you've got short vent runs or installs where liquid fuel could splash up the line under hard braking.
Don't try to recharge with aquarium charcoal
The temptation: a $5 bag of activated charcoal at the pet store. The problem: aquarium charcoal is optimized for water, not fuel vapor. The granule size and surface area are wrong, and it'll saturate in months instead of years. The refill kit includes the right grade — it's worth the few extra dollars over the life of the canister.
