Stationary gasoline generators — home standby units, RV chassis generators, and jobsite generators stored in a shed or attached garage — vent fuel-tank vapor continuously when stored full. In an enclosed or semi-enclosed space the fumes are both a fire-safety concern and a daily comfort issue. A Vapor Trapper captures the vapor between run cycles.
What your vehicle came with from the factory
EPA Phase 3 and CARB EVAP-FEL regulations already apply charcoal-canister requirements to most newly-manufactured small spark-ignition engines and their fuel systems. Older generators and RV chassis gens predating these rules typically have a simple vented tank with no vapor control — that's the typical retrofit target.
What's vehicle-specific to watch for

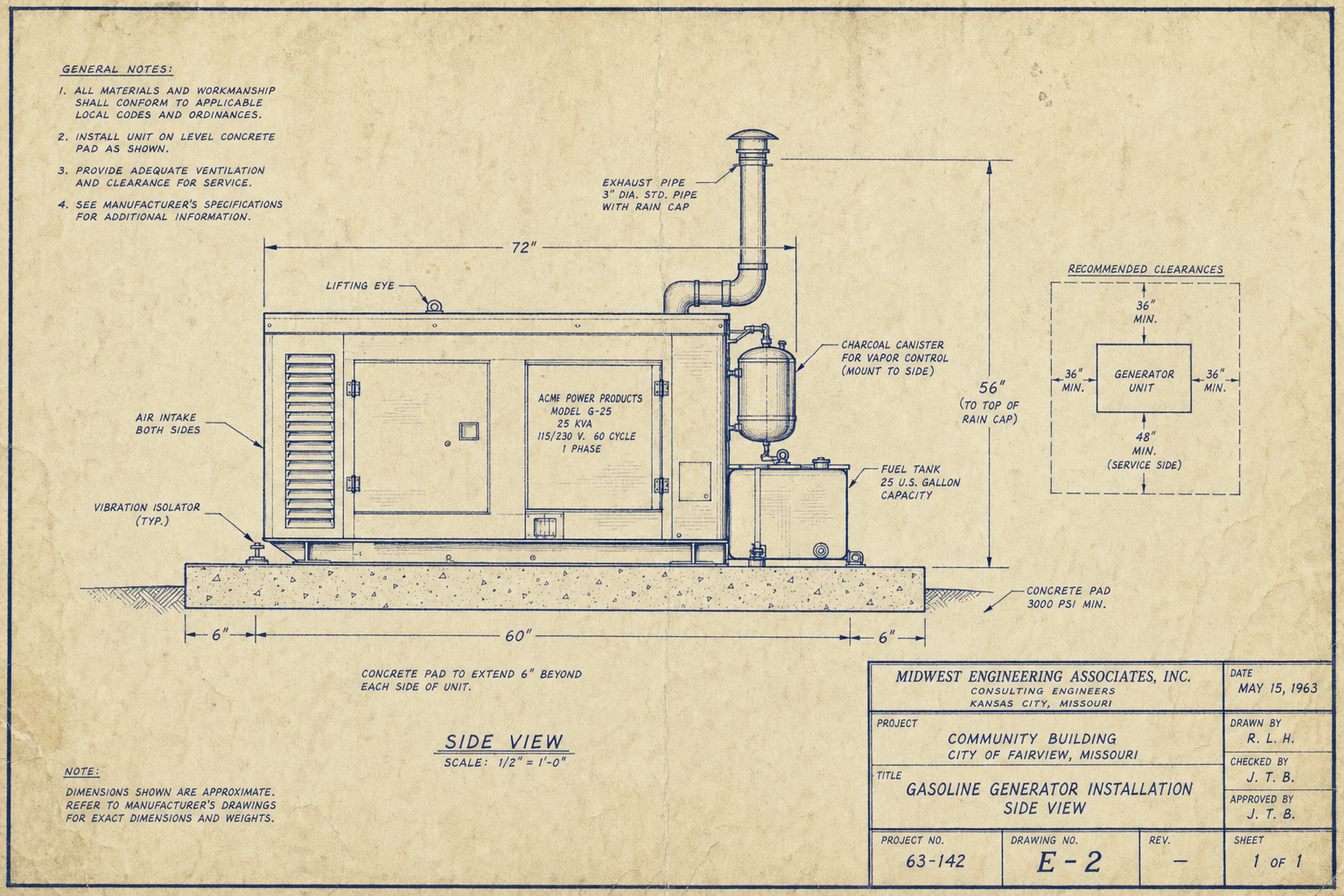

- Consider mounting the canister upright, well clear of the generator's exhaust and any hot surfaces. Heat soak shortens charcoal life noticeably.
- Worth routing the tank vent up and forward with a high loop to discourage liquid migration into the canister.
- A rollover/check valve is recommended if the unit can be tilted or moved (RV chassis gens, portable units).
- Many builders leave the original tank vent path intact — the canister supplements it rather than replacing it.
- For tanks of ~5 gal or smaller, the Small Engine Vapor Trapper is typically the right fit. Larger fuel cells suit the Standard.
- If the generator only runs during outages (rather than weekly exercise cycles), an annual charcoal check is worth planning for — sitting fuel saturates canisters faster than driven applications.
Notable years & fun facts
- Thomas Edison's "Jumbo" dynamo at Pearl Street Station — coupled to a steam engine — began commercial operation September 4, 1882, launching the first central-station power network. Gasoline-driven gensets emerged in the following decades.
- D.W. Onan began his electrical business in Minneapolis around 1920 and built his first generator prototype in 1927; Onan went on to pioneer small gas-powered gensets widely used in rural and military service.
- Modern EPA Phase 3 regulations (in effect since roughly 2011) require evaporative emissions controls on most new gasoline-powered small engines, which is why newer generators ship with canisters from the factory and older ones don't.
For the actual installation steps, see the universal Vapor Trapper installation guide — the procedure is the same across vehicles, only the routing and mounting changes.
Building something specific or unsure about routing on your application? Contact us with a few photos of your engine bay and tank area and we'll help you spec the right setup.
