Jeep CJ, YJ, and TJ owners face two related challenges: fuel-vapor fumes when parked, and the risk of liquid fuel migrating into the canister during off-camber wheeling. Both are addressable with a Vapor Trapper plus the right inline valve.
What your vehicle came with from the factory

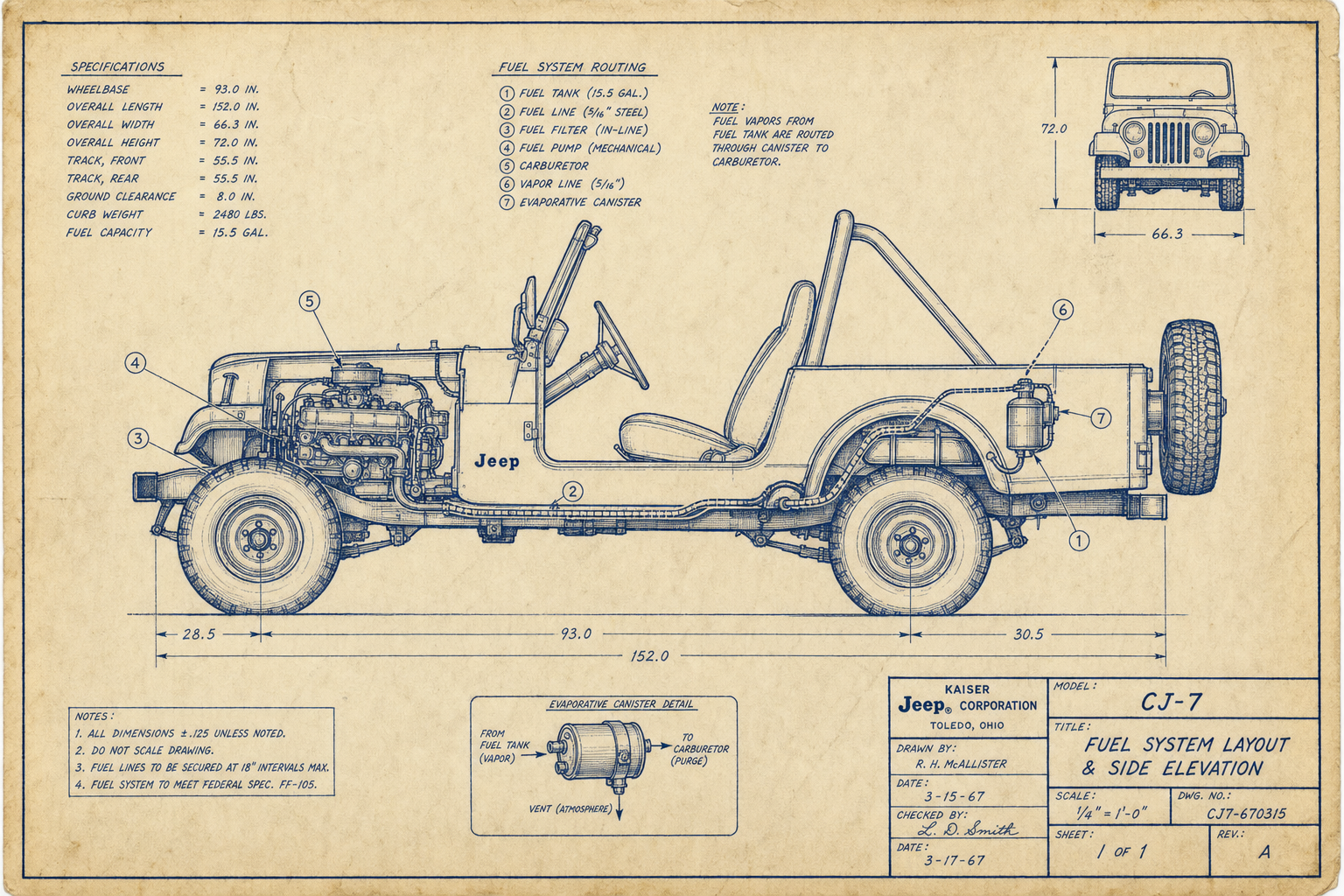

Pre-1972 CJ models had no factory canister. From 1972 forward, Jeeps shipped with factory evap hardware under federal mandate. The factory canister location varies: CJs typically mounted it on the firewall or inner fender; YJs (1987-1995) used an engine-bay location; TJs (1997-2006) moved between an under-hood and rear-of-vehicle location depending on production year and configuration. Worth confirming your specific year before measuring for mount points.
What's vehicle-specific to watch for
- The single most impactful addition for off-road use is a rollover/liquid-check valve installed between the tank vent and the canister inlet. Without one, liquid fuel can reach the charcoal during steep articulation and saturate the media.
- If you wheel the Jeep, consider skid-plate clearance around any underbody-mounted canister; relocating to the engine bay is a common upgrade for serious trail use.
- Fuel-injected TJs use an ECU-monitored purge solenoid — leaving it in the circuit keeps fuel trims clean and avoids CEL codes.
- The Low-Profile Vapor Trapper is worth considering for tight TJ engine bays, especially with the 4.0L inline-six.
Notable years & fun facts
- The CJ ("Civilian Jeep") traces its lineage directly to the WWII MB and GPW — the CJ-2A, sold from 1945, was the first mass-market civilian 4x4.
- The 1987 Wrangler YJ replaced 42 years of round headlights with rectangular sealed-beams — a change that ran the full YJ generation through 1995 before the 1997 TJ restored round lights.
- The TJ (1997-2006) brought back round headlights and added coil-spring suspension front and rear — the first Wrangler with coils, a meaningful articulation upgrade over the YJ's leaf springs.
For the actual installation steps, see the universal Vapor Trapper installation guide — the procedure is the same across vehicles, only the routing and mounting changes.
Building something specific or unsure about routing on your application? Contact us with a few photos of your engine bay and tank area and we'll help you spec the right setup.
