The 1948-1979 F-Series spans five generations and several fuel-tank arrangements. A Vapor Trapper works across all of them; the routing changes depending on whether your truck has an in-cab tank, a behind-cab tank, or saddle tanks.
What your vehicle came with from the factory

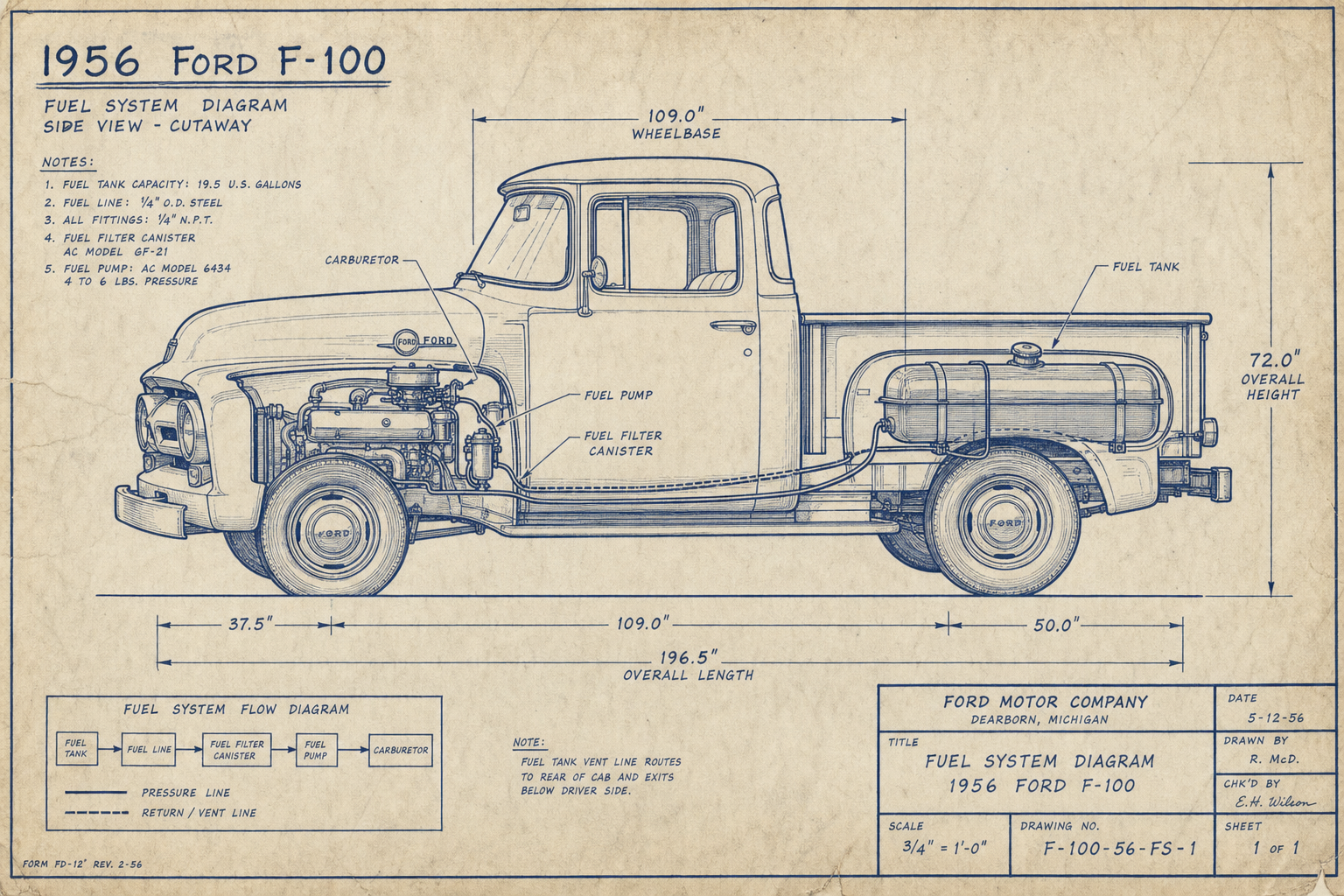

Pre-1971 F-Series trucks had no factory evaporative-emissions hardware. From 1971 forward, federal regulations required a factory charcoal canister and purge plumbing on all gasoline trucks under 6,000 lb GVWR; heavier-duty models received factory canisters somewhat later. Early F-100s (1948-1964) typically place the tank inside the cab, behind the seat — the same arrangement as period Chevy pickups.
What's vehicle-specific to watch for
- Worth identifying your tank arrangement first — in-cab (early), behind-cab (1965+ many configurations), or saddle tanks (1973+ Supercabs and some other configurations).
- In-cab tank trucks benefit most from a canister because vapor enters the cabin directly through the bed/seat seal. Sealing the firewall pass-through on the new vent line makes a noticeable difference here.
- Saddle-tank trucks behave similarly to GM dual-tank trucks — preserve the selector valve and tee both tanks into a single canister.
- Pre-1971 trucks typically benefit from switching to a non-vented gas cap when the canister is added.
- Big tank capacities (40+ gal combined) suit the High Capacity Vapor Trapper.
Notable years & fun facts
- The F-Series has been the best-selling truck in America every year since 1977 — over 47 consecutive years and counting.
- The 1965 redesign introduced the now-iconic Twin I-Beam front suspension, which Ford ran in some form until 1996.
- The 1973-1979 "Dentside" generation introduced the SuperCab body style and the 460 cubic-inch V8 option — the largest gas engine ever offered in a half-ton F-Series.
For the actual installation steps, see the universal Vapor Trapper installation guide — the procedure is the same across vehicles, only the routing and mounting changes.
Building something specific or unsure about routing on your application? Contact us with a few photos of your engine bay and tank area and we'll help you spec the right setup.
