Search "DIY charcoal canister" and you'll find dozens of videos and forum posts. The recipe is always similar: a length of 2" PVC pipe, two end caps, a barb fitting glued in each end, and a handful of activated charcoal from the aquarium store. Total cost: maybe $15.
The idea is right. The execution is wrong, and a few of the failure modes are legitimately dangerous. Here's a breakdown.
Problem 1: PVC isn't fuel-rated
Standard white Schedule 40 PVC is rated for water, drain, and air at moderate pressure and temperature. It is not rated for petroleum hydrocarbons. Long-term exposure to gasoline vapor and (if liquid fuel ever reaches it) liquid fuel will:
- Plasticize the PVC — it gets soft, then deforms
- Allow fuel vapor to permeate the wall (you'll smell fuel through the pipe itself)
- Eventually fail at the glued joints
CPVC is rated for hot water but still not for fuel. The only plastics genuinely fuel-rated are HDPE, certain crosslinked polymers, and engineering plastics that you can't buy at Home Depot.
Problem 2: PVC glue joints leak vapor
PVC cement creates a chemical weld between two pieces of PVC. It's strong against water pressure. It's not designed as a fuel vapor seal. Hydrocarbon molecules are small and find paths through any micro-gap. The result: the canister itself smells like fuel, and so does the room around it.
Problem 3: Aquarium charcoal isn't the right charcoal

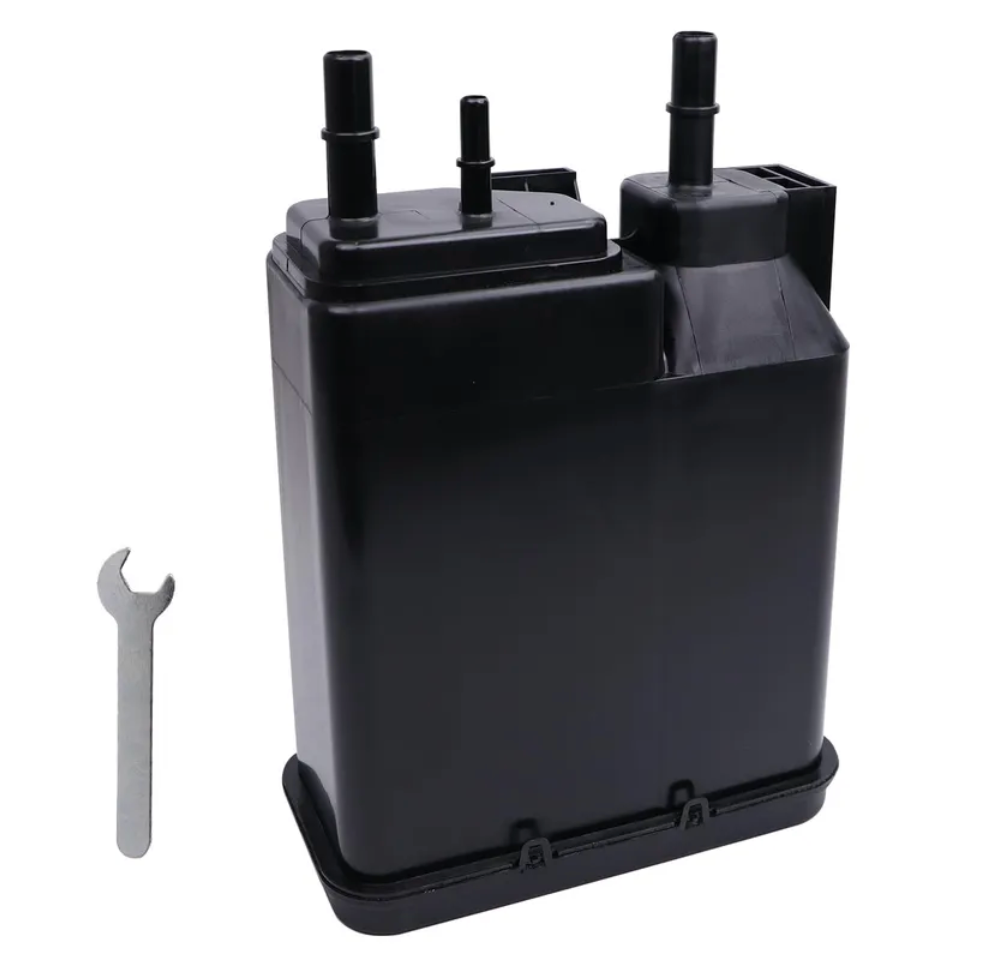

Activated charcoal grades vary wildly. Aquarium charcoal is optimized for water filtration — typically large granule size, low surface area per gram. Charcoal designed for fuel vapor adsorption (like what's in factory EVAP canisters and the Vapor Trapper™) has much higher surface area, smaller granules, and a different pore structure. The DIY version saturates fast and stops working long before you'd expect.
Problem 4: No retention screens
Most DIY builds skip the screens that hold the charcoal media in place. Vibration eventually packs the charcoal toward one end, leaving an air channel along the other. Fuel vapor takes the path of least resistance — straight through the open channel, untouched by charcoal. The canister technically still flows, but it's no longer filtering anything.
Problem 5: Fire risk if liquid fuel reaches the canister
If the canister is mounted lower than the tank's high-fuel level, or if the vehicle gets parked at a steep angle with a full tank, liquid fuel can run up the vent line into the canister. Charcoal saturated with liquid gasoline is a fire hazard — and a soaked PVC canister has the structural integrity of wet cardboard.
What works instead
A purpose-built canister with a fuel-rated body, sealed end caps, retention screens, and the right grade of charcoal media. The Vapor Trapper™ is built from 6061 billet aluminum, sealed with O-rings, and uses charcoal media specifically formulated for fuel vapor adsorption. It's also rechargeable — when the media saturates after several years, the Charcoal Media Refill Kit brings it back to new.
The price difference between a $15 PVC build and a real canister works out to a few hundred dollars over the life of the vehicle. For something that handles fuel vapor in your garage, it's not the place to save money.
