If you're chasing the smell of raw gas in your garage, you've probably already heard two suggestions: "just use a vented gas cap" and "add a charcoal canister." They sound like alternatives. They're not. They solve different problems, and most builds need both.

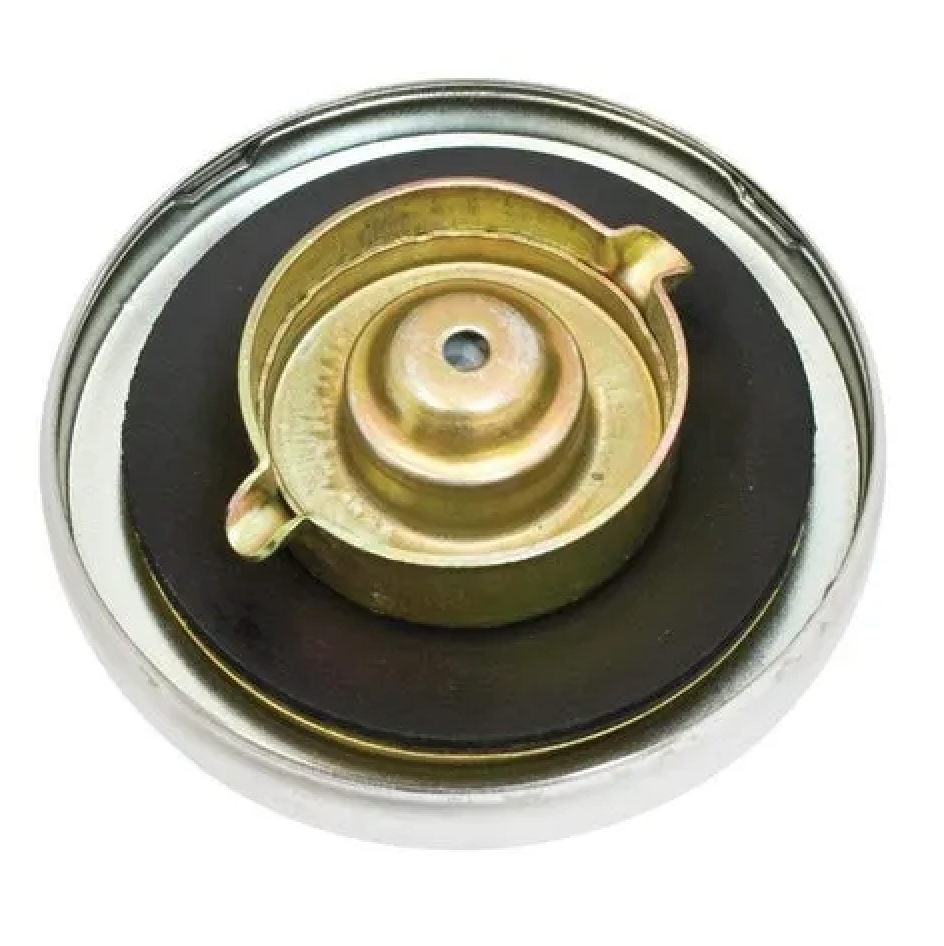

What a vented gas cap actually does
A vented gas cap allows air into the tank as you burn fuel — preventing a vacuum that would collapse the tank or starve the fuel pump. Some vented caps are also designed to release pressure out when fuel expands in heat. They're a pressure-equalization device.
What a vented cap does not do: capture or filter raw fuel vapor. When pressure escapes through the cap, gasoline fumes go right with it. If your cap is venting through a hole in the top of the tank that sits inside your trunk, garage, or boat compartment — you're going to smell it.
What a charcoal canister actually does
A charcoal canister sits inline on the tank's atmosphere vent line and absorbs hydrocarbon vapor before it reaches the air. Activated charcoal has a massive internal surface area — a small canister can adsorb a remarkable quantity of fuel vapor before it saturates.
It doesn't equalize pressure. Air still passes through it freely (that's why it works passively). But the fumes get trapped on the way out, and clean air goes into the room.
Which do you need?
Sealed cap + dedicated vent line + charcoal canister: the right setup for most modern fuel cells and aftermarket tanks. The cap stays closed (no fume leak from the cap), pressure equalizes through a dedicated vent fitting on the tank, and that vent runs into a Vapor Trapper™ mounted above the tank.
Vented cap + no canister: the worst-case smell scenario. Skip this configuration.
Vented cap + canister on a separate vent: works, but the cap will still leak some vapor. Use a sealed cap if your tank has a dedicated vent fitting.
Vented cap with no other vent: common on old factory tanks (pre-EVAP cars and trucks). Replace the vented cap with a sealed cap, drill or plumb a vent line out of the tank, and run that vent into a charcoal canister. This is the standard hot rod, classic truck, and Jeep upgrade.
How to figure out what your tank has
- If the gas cap has small holes around the rim or a one-way valve, it's vented
- If the tank has a separate fitting (rubber hose, metal nipple) somewhere besides the filler neck and the fuel pickup, that's a vent line
- If the tank only has a fuel pickup and a vented cap, you'll need to add a vent fitting (or replace the tank)
The bottom line
A vented gas cap is for pressure equalization. A charcoal canister is for vapor capture. Most builds need both — a sealed cap, a dedicated vent line, and a canister on that line. That's the setup that eliminates raw fuel smell permanently.
If you're putting together your install, the Vapor Trapper™ Combo Install Kit includes the canister, fittings, and mounting hardware. For show-quality visible installs, the Premium Combo Kit swaps in billet billet aluminum mounting clamps.
